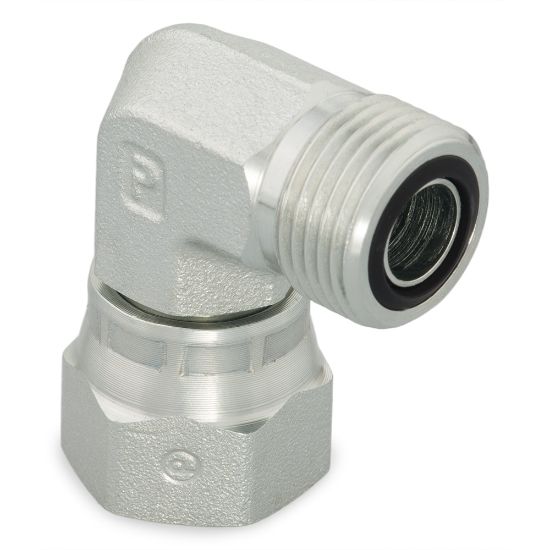

Picture of 8C6MLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

8C6MLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
Backordered
Estimated Lead Time: 14 days
Partner Available:Backordered
SKU 8C6MLOS
$24.08/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialSteel
Connection TypeO-ring Face SealShape90° Elbow
Connection 3 TypenaSpecifications MetSAE J1453
Connection 2 Thread SizenaConnection 1 TypeMale O-Ring Face Seal
Connection 2 TypeFemale O-Ring Face Seal SwivelConnection 4 Typena
O-Ring Material90 Durometer NitrileConnection 4 Tube Outside Diameterna
Connection 1 Tube Outside Diameter12 mmConnection 2 Tube Outside Diameter12 mm
Connection 3 Tube Outside DiameternaMaximum Dynamic Pressure9200 psi
Dimensional Weight0.07913669064748201 lbConnection 3 Thread Sizena
