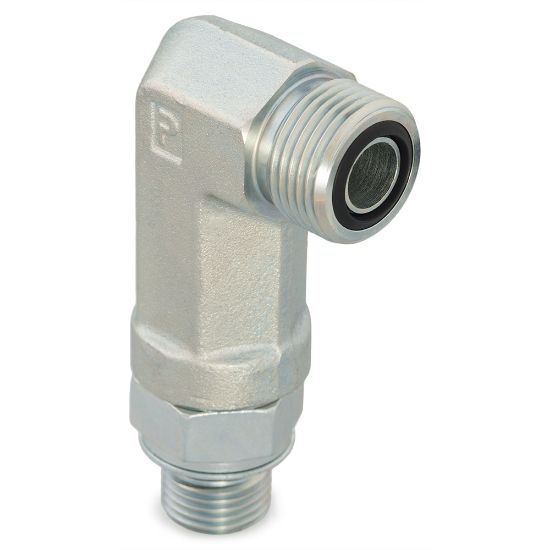

Picture of 8M18CC87OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

8M18CC87OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
Backordered
Estimated Lead Time: 87 days
Partner Available:Backordered
SKU 8M18CC87OMLOS
$75.81/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 3 Typena
Connection 2 Thread SizenaConnection TypeTube to ISO 6149
Connection 3 Tube Outside DiameternaConnection 4 Tube Outside Diameterna
Connection 1 TypeMale O-Ring Face Seal - LongO-Ring Material90 Durometer Nitrile
Maximum Dynamic Pressure3600 psiConnection 2 TypeMale ISO 6149
Specifications MetSAE J1453, ISO 8434-3Body MaterialSteel
Shape90° ElbowConnection 2 Tube Outside Diameterna
Connection 4 TypenaConnection 3 Thread Sizena
Connection 1 Tube Outside Diameter8, 10 mm
