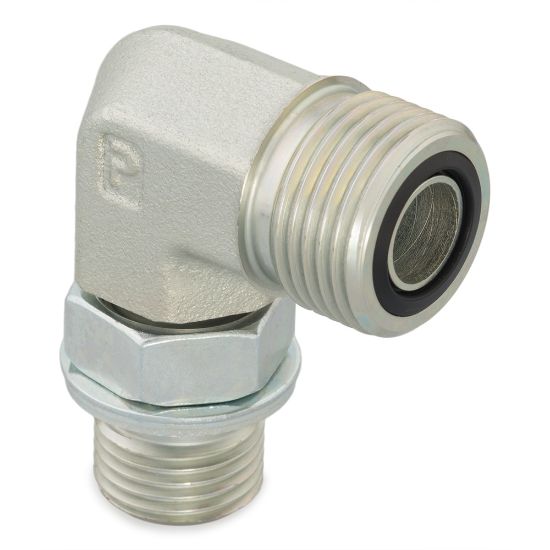

Picture of Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8M22C8OMLOS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8M22C8OMLOS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
Backordered
SKU 8M22C8OMLOS
$27.52
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Body MaterialSteelMaximum Dynamic Pressure3600 psi
Dimensional Weight0.19784172661870503 lbO-Ring Material90 Durometer Nitrile
Specifications MetSAE J1453Shape90° Elbow
Connection 1 TypeMale O-Ring Face SealConnection 3 Typena
Connection 4 TypenaConnection 3 Thread Sizena
Connection 2 Tube Outside DiameternaConnection 3 Tube Outside Diameterna
Connection 4 Tube Outside DiameternaConnection TypeTube to Metric-ORR
Connection 2 TypeMale Metric O-Ring Retaining RingConnection 2 Thread SizeM22x1.5 mm
Connection 1 Tube Outside Diameter12 mm
