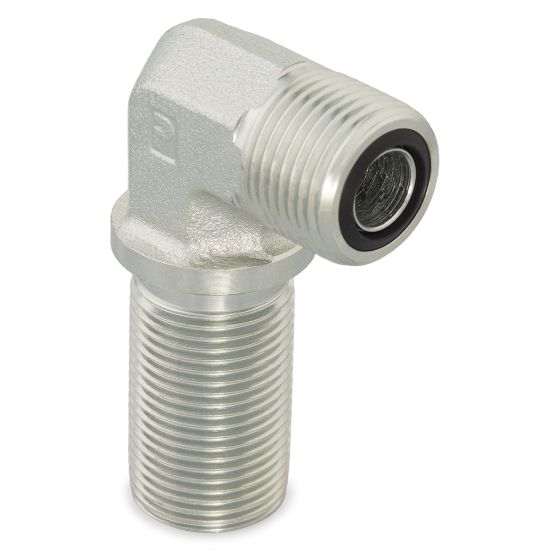

Picture of Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8WEMLOS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Seal-Lok O-Ring Face Seal Tube Fittings and Adapters - 8WEMLOS

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
Backordered
SKU 8WEMLOS
$53.65
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Body MaterialSteelO-Ring Material90 Durometer Nitrile
Specifications MetSAE J1453Shape90° Elbow
Connection TypeO-ring Face SealConnection 1 TypeMale O-Ring Face Seal
Connection 3 TypenaConnection 4 Typena
Connection 2 Thread SizenaConnection 3 Thread Sizena
Connection 3 Tube Outside DiameternaConnection 4 Tube Outside Diameterna
Connection 2 Tube Outside Diameter1/2 inchConnection 2 TypeMale O-Ring Face Seal Bulkhead
Maximum Dynamic Pressure9200 psiConnection 1 Tube Outside Diameter12 mm
