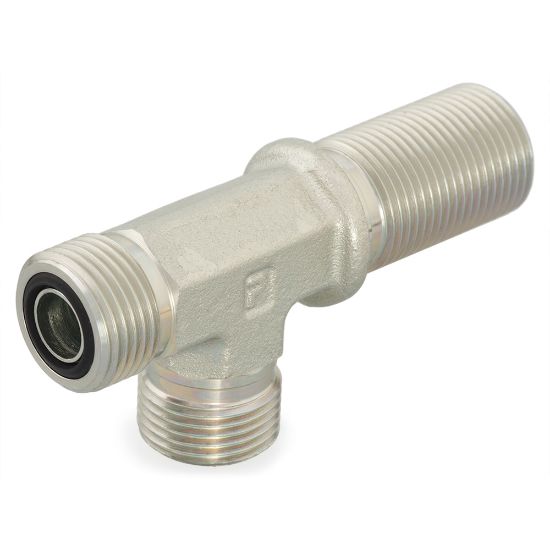

8WJJMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered Estimated Lead Time: 38 days
Partner Available:	6 in stock

SKU 8WJJMLOS

$56.20/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Dimensional Weight	0.07742805755395683 lb	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J1453	Connection 1 Type	Male O-Ring Face Seal
Connection 4 Type	na	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 4 Tube Outside Diameter	na
Shape	Tee	Connection 3 Type	Male O-Ring Face Seal
Connection 2 Type	Male O-Ring Face Seal Bulkhead	Maximum Dynamic Pressure	9200 psi
Connection 2 Tube Outside Diameter	12 mm	Connection 1 Tube Outside Diameter	1/2 inch
Connection 3 Tube Outside Diameter	12 mm	Connection Type	Bulkhead Run Tee with Metric Hex

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
