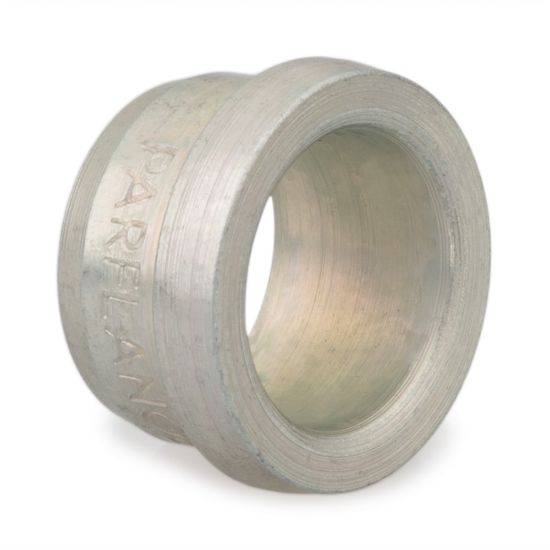

TPLS20 - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Backordered Estimated Lead Time: 99 days
Partner Available:	16 in stock

SKU TPLS20

$5.44/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube Outside Diameter	na
Connection 4 Type	na	O-Ring Material	na
Maximum Dynamic Pressure	na	Shape	Sleeve
Connection 2 Type	na	Connection Type	na
Connection 1 Tube Outside Diameter	20 mm	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Body Material	Steel
Connection 1 Type	Parflange Sleeve - Metric	Connection 4 Tube Outside Diameter	na
Connection 3 Type	na	Connection 2 Thread Size	na
Specifications Met	SAE J1453

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
