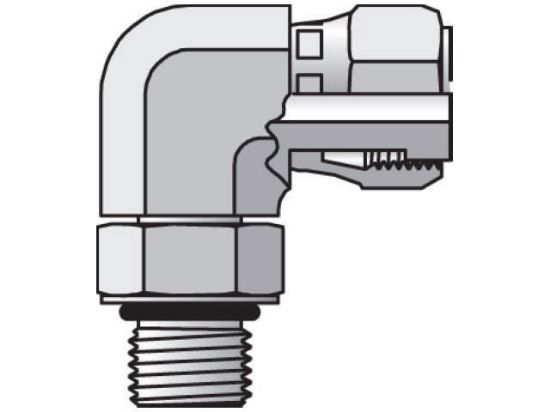

8 AEL6-S - Seal-Lok ORFS 90° Elbow AOEL6

Seal-Lok - Straight Thread Swivel Elbow ORFS Swivel / SAE-ORB

Availability:	Backordered Estimated Lead Time: 38 days
Partner Available:	Backordered

SKU 8 AEL6-S

$30.76/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
UOM	EA	Pkg Qty/UOM	10 EA
End 1	1/2 Inch	Pkg Qty	10
End 2	3/4-16 UN/UNF-2A	Parker Group	Fluid Connector
Parker Division	Tube Fitting	Material	Steel
Inch/Metric	Inch	End 1	1/2 Inch
End 1 Type	Inch	Configuration Type	90° Elbow
Series	ORFS	Configuration Sub-Type	Straight Thread Swivel Elbow ORFS Swivel / SAE-ORB
Tube Fitting/Adapter Type	ORFS, Seal-Lok O-Ring Face Seal	End 2 Type	UN/UNF-2A
Trade Name	Seal-Lok	End 2	3/4-16 UN/UNF-2A

Product resources

Seal-Lok O-Ring Face Seal Fittings (PDF)
