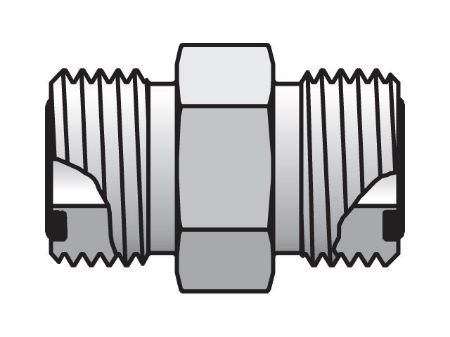

Seal-Lok ORFS Straight HLO
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Seal-Lok O-Ring Face Seal Tube Fittings have proven to be very effective in eliminating leakage at the higher pressures found in today’s hydraulic systems. The Seal-Lok fitting is an O-ring face seal type fitting that consists of a nut, a body, an O-ring and a sleeve. Seal-Lok fittings are suitable for a wide range of tube wall thicknesses and are readily adaptable to pipe, inch or metric tubing and hose.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Material | Pkg Qty/UOM | End 1 | Pkg Qty | End 2 | Parker Group | Parker Division | Configuration Type | Material | Inch/Metric | End 1 | End 1 Type | End 2 Type | Series | Tube Fitting/Adapter Type | Trade Name | Configuration Sub-Type | End 2 | O-Ring/Seal Material | O-Ring/Seal Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 HL-S | Backordered | Backordered | $16.57/each | EA | EA | Steel | 10 EA | 3/4 Inch | 10 | 3/4 Inch | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 3/4 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Union ORFS / ORFS | 3/4 Inch | |||
| 16 HLO-SS FKM | Backordered | Backordered | $225.72/each | EA | EA | Stainless Steel | 1 EA | 1 Inch | 1 | 1 Inch | Fluid Connector | Tube Fitting | Straight | Stainless Steel | Inch | 1 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Union ORFS / ORFS | 1 Inch | Fluorocarbon | Fluorocarbon | |
| 20 HL-S | Backordered | Backordered | $47.37/each | EA | EA | Steel | 2 EA | 1 1/4 Inch | 2 | 1 1/4 Inch | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 1 1/4 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Union ORFS / ORFS | 1 1/4 Inch | |||
| 6 HL-S | Backordered | Backordered | $6.13/each | EA | EA | Steel | 25 EA | 3/8 Inch | 25 | 3/8 Inch | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 3/8 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Union ORFS / ORFS | 3/8 Inch |
