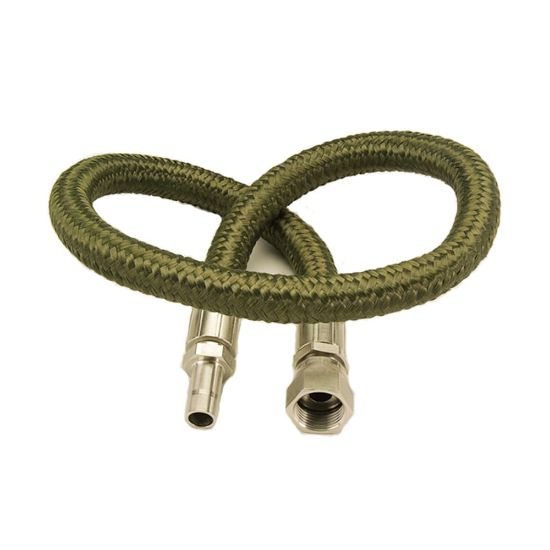

Picture of Seamless Convoluted PTFE with Nomex® Braid - NCW/NCB - 04-NCB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Seamless Convoluted PTFE with Nomex® Braid - NCW/NCB - 04-NCB

PTFE hose with a nomex braid eliminates RFI issues and theyare also less susceptible to cracking from stress or flexing than metal hose assemblies.
Availability:
Backordered
SKU 04-NCB
$24.68
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)0.26
Hose StyleStatic-DissipativeDivisionParflex Division
Maximum Operating Pressure50 barMediaChemicals (Paint)
Product TypePTFE HoseOutside Diameter12.2 mm
ApplicationFood & Beverage ProcessingProduct StyleStatic Dissipative
Size-4Weight0.03 kg/m
Cover Materialn/aInside Diameter1/4 inch
Compatible FittingPAGE SeriesSpecifications MetUSP Class VI (compliant core tube)
Minimum Bend Radius1 inchVacuum Pressure Rating28 Inch-Hg
Hose Inner Tube MaterialPolytetrafluoroethylene (PTFE) Static DissipativeHose Reinforcement MaterialGreen Nomex
Maximum Operating Temperature400 °FMinimum Operating Temperature-73 °C
