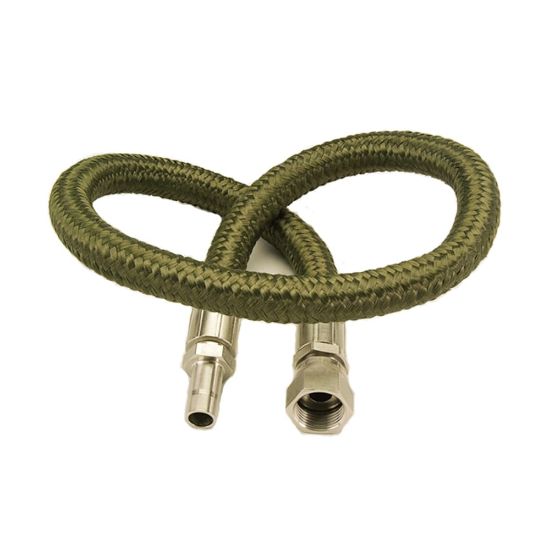

06-NCB - Seamless Convoluted PTFE with Nomex® Braid - NCW/NCB

PTFE hose with a nomex braid eliminates RFI issues and theyare also less susceptible to cracking from stress or flexing than metal hose assemblies.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 06-NCB

$34.16/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Style	Static-Dissipative
Hose I.D. (inch)	0.37	Product Style	Static Dissipative
Cover Material	n/a	Compatible Fitting	PAGE Series
Specifications Met	USP Class VI (compliant core tube)	Vacuum Pressure Rating	711.2 mm-Hg
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative	Hose Reinforcement Material	Green Nomex
Maximum Operating Temperature	400 °F	Minimum Operating Temperature	-73 °C
Design Factor	4:1	Size	-6
Media	Water	Weight	0.09 kg/m
Inside Diameter	10 mm	Outside Diameter	14.7 mm
Minimum Bend Radius	38 mm	Maximum Operating Pressure	2.8 MPa
