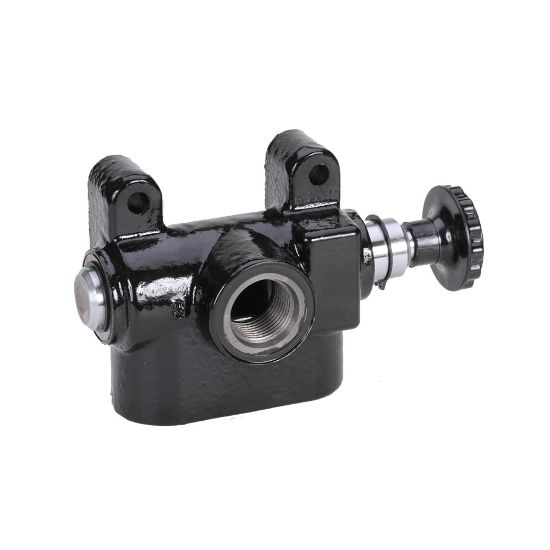

Picture of Selector Valve - S & H Series - HM-8

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Selector Valve - S & H Series - HM-8

Parker’s S, H, SM, & HM are two position Selector Valves. The S & SM Models are designed for directing an input flow to two different selectable circuits. The H & HM Models are designed for adding float (or freewheeling) functionality to a circuit.
Availability:
Backordered
SKU HM-8
$235.20
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAStyleFloat Selector
MountingManifoldPort SizeSAE-8
FunctionSelector ValveConnection TypeSAE
Maximum Operating Pressure3000 psiDivisionHydraulic Valve Systems Division
Weight2.3 lbFor Fluid TypeHydraulic Oil
Minimum Operating Temperature-40 °FAdjustment MechanismKnob
Body MaterialHigh Strength Cast IronMaximum Operating Temperature+200 °F
Maximum Flow Rate10Connection Size#8
Seal MaterialNitrileActuation TypeManual
Product resources

Literature and Reference Materials
