*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

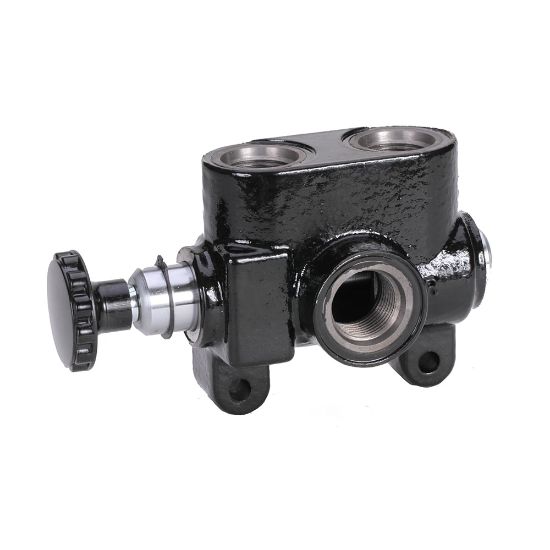

S-75 - Selector Valve - S & H Series

Parker’s S, H, SM, & HM are two position Selector Valves. The S & SM Models are designed for directing an input flow to two different selectable circuits. The H & HM Models are designed for adding float (or freewheeling) functionality to a circuit.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	11 in stock

SKU S-75

$252.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Style	Circuit Selector
Mounting	In-Line	Port Size	3/4" NPT
Seal Material	Nitrile	Actuation Type	Manual
Function	Selector Valve	Maximum Flow Rate	30
Connection Size	3/4"	Connection Type	NPT
For Fluid Type	Hydraulic Oil	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	2000 psi	Body Material	High Strength Cast Iron
Weight	5.4 lb	Adjustment Mechanism	Knob
Maximum Operating Temperature	+200 °F
