*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

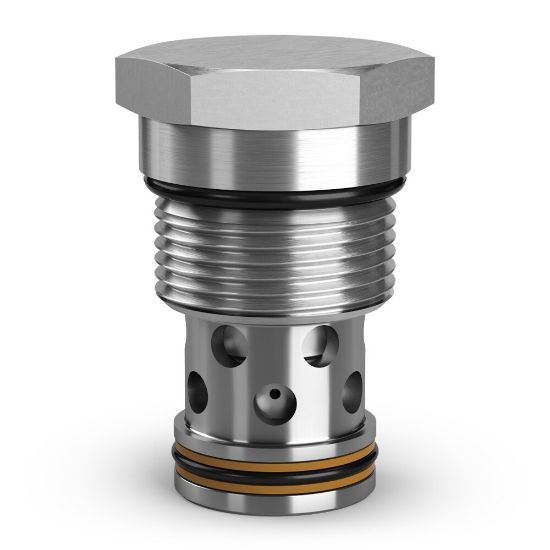

D06C2-2.5N - Side to Nose Check Valves

Parker check valves designed for “reverse” flow from the side port (port 2) to the end port (port 1) from 19 to 500 lpm (5 to 132 gpm) and pressures up to 420 bar (6,000 psi), allowing manifold space optimization while achieving superior performance.

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	12 in stock

SKU D06C2-2.5N

$332.58/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure	36 PSI, 2.5 BAR	Maximum Flow Rate	132 GAL/MIN, 500 L/MIN
Seal Material	Nitrile	Body Material	n/a
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Steel (all parts)
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Maximum Operating Temperature	121 °C
Maximum Operating Pressure	420 bar	Actuation Type	Pressure Sensing
Maximum Inlet Pressure Rating	420 bar	Cavity Size	C16-2
Installation Torque	74 lb-ft	Flow Rate	500 L/min
Function	Side to Nose Check	Flow Direction	1-2 Checked
Leak Rate	3 drops/min @ 6000 Psi (420 bar)	Cracking Pressure	2.5 bar
Weight	0.57 lb	Maximum Flow Rate	500 L/min
Minimum Operating Pressure	6000 psi
