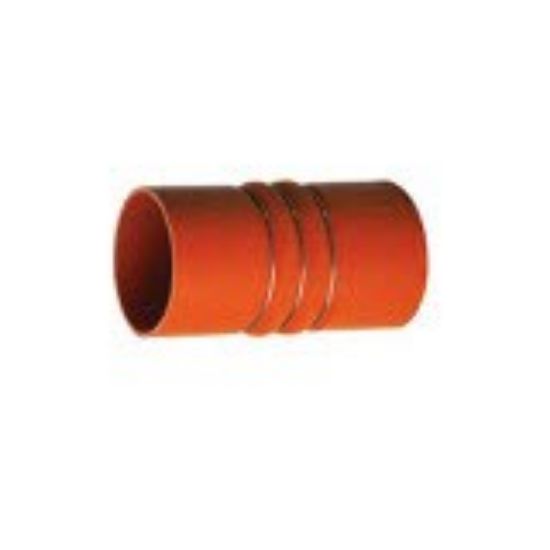

6823-40008000 - Silicone Extreme High Temperature Charge Air Cooler Hose, Series 6823

Silicone Extreme High Temperature Charge Air Cooler Hose is designed to connect, align and transfer the hot exhaust air from the charging system of heavy duty engine applications to 500°F and 25 psi, Series 6823

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	4 in stock

SKU 6823-40008000

$78.02/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Burst Pressure (psi)	80
Hose I.D. (inch)	4	Standard Package Quantity	6 x 8-in lg
Minimum Operating Temperature	-65	Hose Inner Tube Material	Brick Red
Maximum Operating Temperature	500	Maximum Operating Pressure	80
Media	Air (Hot Air)	Outside Diameter	4.220
Cover Material	Silicone	Specifications Met	SAE J20R5
Inside Diameter	4	Minimum Bend Radius	n/a
Weight	0.74	Minimum Burst Pressure	80
Hose Reinforcement Material	4 Plies of High Temperature Aramid (with external Stainless Steel Retaining Rings)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
