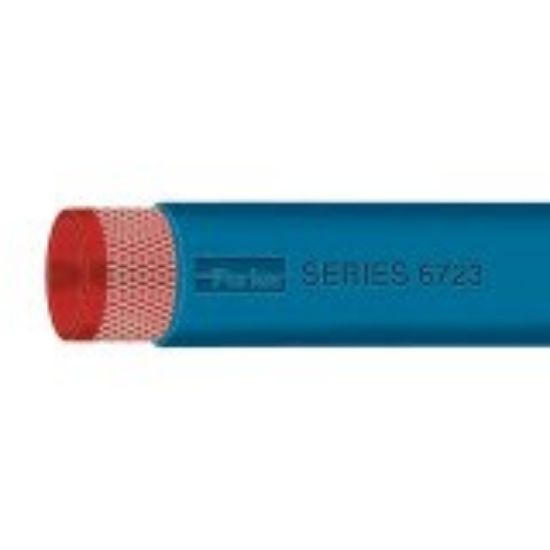

6723-0625050 - Silicone Heavy Wall High Temperature Heater Hose, Series 6723

Silicone Heavy Wall High Temperature Heater Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 83 psi, Series 6723

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU 6723-0625050

$11.92/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Standard Pack Qty (ft)	50
Hose I.D. (inch)	5/8	Minimum Burst Pressure (psi)	250
Media	Water	Maximum Operating Pressure	6 bar
Package Type	Carton	Cover Color	Blue
Minimum Bend Radius	38.1 mm	Weight	0.27 lb/ft
Minimum Operating Temperature	-65 °F	Inside Diameter	15.9 mm
Cover Material	Silicone	Cover Structure	Glossy
Outside Diameter	1.020 inch	Hose Reinforcement Material	Multiple Plies of High Temperature Textile
Specifications Met	SAE J20R3	Maximum Operating Temperature	350 °F
Minimum Burst Pressure	250 psi	Hose Inner Tube Material	Brick Red

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
