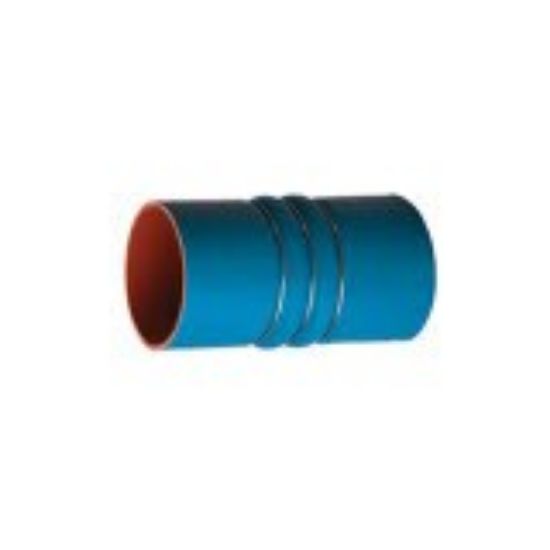

6824-30006000 - Silicone High Temperature Charge Air Cooler Hose, Series 6824

Silicone High Temperature Charge Air Cooler Hose is designed to connect, align and transfer the intake air from the charging system of heavy duty engine applications to 350°F and 25 psi, Series 6824

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU 6824-30006000

$54.20/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Standard Package Quantity	6 x 6-in lg
Hose I.D. (inch)	3	Minimum Burst Pressure (psi)	80
Minimum Bend Radius	n/a	Maximum Operating Pressure	5.5 bar
Specifications Met	SAE J20R5	Maximum Operating Temperature	500 °F
Hose Inner Tube Material	Silicone	Minimum Operating Temperature	-54 °C
Inside Diameter	76.2 mm	Hose Reinforcement Material	4 Plies of High Temperature Textile (with external Stainless Steel Retaining Rings)
Minimum Burst Pressure	80 psi	Weight	0.52 lb/ft
Cover Color	Blue	Outside Diameter	3.320 inch
Media	Air (Hot Air)	Cover Material	Silicone
