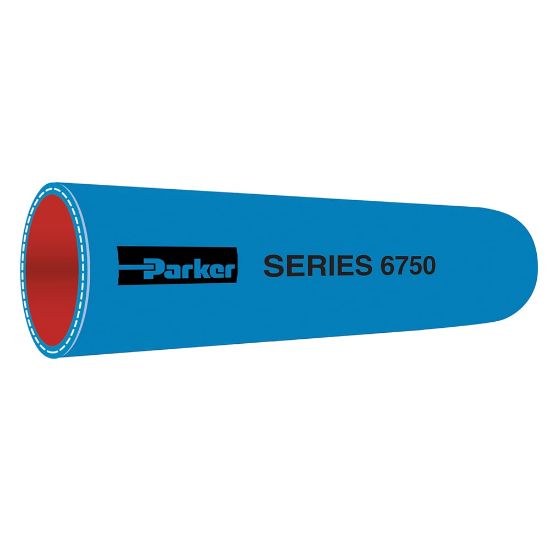

6750-2000003 - Silicone Standard Wall High Temperature Coolant Hose, Series 6750

Silicone Standard Wall High Temperature Coolant Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 159 psi, Series 6750

Availability:	Backordered Estimated Lead Time: 117 days
Partner Available:	3 in stock

SKU 6750-2000003

$132.80/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	2
Minimum Burst Pressure (psi)	200	Media	Water
Minimum Burst Pressure	200 psi	Package Type	Carton
Cover Color	Blue	Inside Diameter	2 inch
Minimum Bend Radius	n/a	Minimum Operating Temperature	-54 °C
Specifications Met	SAE J20R1, Class A	Cover Material	Silicone
Cover Structure	Glossy	Hose Reinforcement Material	Multiple Plies of High Temperature Textile
Maximum Operating Pressure	67 psi	Maximum Operating Temperature	350 °F
Weight	2.84 kg/m	Quantity per Box	1 x 3-ft Lengths
Outside Diameter	59.7 mm	Hose Inner Tube Material	Brick Red

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
