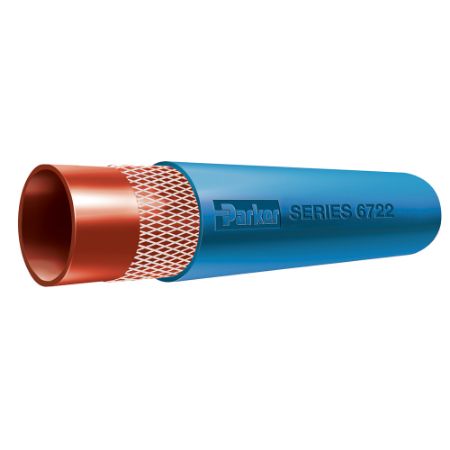

Silicone Standard Wall High Temperature Heater Hose, Series 6722
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 6722 Silicone Standard Wall High Temperature Heater Hose provides excellent service across a wide variety of coolants and multiple engine heater and radiator applications. The silicone construction resists chemicals, aging, cold leaks, cracking, delamination, heat, ozone and peeling to maximize performance. The hose is flexible for easy routing and installation, resists the elevated temperatures common to engine compartments and is available in a variety of popular and convenient standard lengths.
Markets:
• General Industrial
• Transportation
Features/Benefits:
• Tube: Red silicone for superior heat resistance to 350°F.
• Reinforcement: Multiple textile plies for strength and kink resistance.
• Cover: Blue silicone for superior temperature resistance and easy identification.
Applications:
- media
• Coolant
• Hot water
- usage
• Coolant transfer in heater and coolant circuits
• DEF systems
• Agricultural equipment
• Buses
• Construction equipment
• Off-road equipment
• Trucks
Industry Standards:
• SAE J20R3 Class A
Safety/Technical:
• Design Factor: 3:1
• Nonconductive
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Standard Pack Qty (ft) | Minimum Burst Pressure (psi) | Package Type | Minimum Bend Radius | Cover Color | Minimum Operating Temperature | Inside Diameter | Media | Outside Diameter | Weight | Cover Material | Cover Structure | Hose Reinforcement Material | Specifications Met | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Burst Pressure | Hose Inner Tube Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6722-0250050 | 14 in stock | 235 in stock | $6.11/foot | FT | 1/4 | 50 | 250 | Carton | 0.5 | Blue | -65 | 1/4 | Coolants | 0.530 | 0.10 | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J20R3 | 17 | 350 | 250 | Brick Red | |
| 6722-0250250 | Backordered | 51 in stock | $5.22/foot | FT | 1/2 | 250 | 250 | Reel | 12.7 mm | Blue | -54 °C | 1/2 inch | Coolants | 0.530 inch | 0.15 kg/m | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J2387 | 17 bar | 176 °C | 250 psi | Brick Red | |
| 6722-0375050 | Backordered | 1562 in stock | $6.85/foot | FT | 3/8 | 50 | 250 | Carton | 0.8 | Blue | -65 | 3/8 | Coolants | 0.690 | 0.13 | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J20R3 | 17 | 350 | 250 | Brick Red | |
| 6722-0375250 | Backordered | 329 in stock | $5.83/foot | FT | 3/8 | 250 | 250 | Reel | 19.1 mm | Blue | -65 °F | 3/8 inch | Water | 0.700 inch | 0.13 lb/ft | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J2387 | 17 bar | 350 °F | 17.2 bar | Brick Red | |
| 6722-0500050 | Backordered | 678 in stock | $8.74/foot | FT | 1/2 | 50 | 250 | Carton | 1.5 | Blue | -65 | 1/2 | Coolants | 0.820 | 0.17 | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J20R3 | 17 | 350 | 250 | Brick Red | |
| 6722-0500250 | Backordered | 286 in stock | $7.46/foot | FT | 1/2 | 250 | 250 | Reel | 38.1 mm | Blue | -54 °C | 1/2 inch | Coolants | 0.820 inch | 0.17 lb/ft | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J20R3 | 250 psi | 350 °F | 17.2 bar | Silicone | |
| 6722-0625050 | Backordered | 414 in stock | $10.47/foot | FT | 5/8 | 50 | 250 | Carton | 1.8 | Blue | -65 | 5/8 | Coolants | 0.940 | 0.24 | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J20R3 | 17 | 350 | 250 | Brick Red | |
| 6722-0625100 | Backordered | 100 in stock | $9.36/foot | FT | 5/8 | 100 | 250 | Carton | 44.5 mm | Blue | -65 °F | 5/8 inch | Coolants | 0.940 inch | 0.36 kg/m | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J20R3 | 250 psi | 350 °F | 250 psi | Silicone | |
| 6722-0625250 | 733 in stock | 5872 in stock | $7.98/foot | FT | 5/8 | 250 | 250 | Reel | 45 mm | Blue | -54 °C | 5/8 inch | Coolants | 0.940 inch | 0.36 kg/m | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J2387 | 17 bar | 175 °C | 17 bar | Silicone | |
| 6722-0750050 | Backordered | 497 in stock | $10.24/foot | FT | 3/4 | 50 | 200 | Carton | 2.8 | Blue | -65 | 3/4 | Coolants | 1.070 | 0.26 | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J20R3 | 14 | 350 | 200 | Brick Red | |
| 6722-0750100 | Backordered | 296 in stock | $10.24/foot | FT | 3/4 | 100 | 200 | Carton | 69.9 mm | Blue | -54 °C | 19.1 mm | Water | 1.070 inch | 0.39 kg/m | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J2387 | 14 bar | 350 °F | 200 psi | Brick Red | |
| 6722-0750250 | Backordered | 3043 in stock | $8.73/foot | FT | 3/4 | 250 | 200 | Reel | 70 mm | Blue | -65 °F | 19.1 mm | Coolants | 27.1 mm | 0.39 kg/m | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J2387 | 200 psi | 347 °F | 200 psi | Silicone | |
| 6722-0875100 | Backordered | 88 in stock | $10.67/foot | FT | 7/8 | 100 | 175 | Carton | 4.3 inch | Blue | -65 °F | 22.2 mm | Coolants | 1.190 inch | 0.15 kg | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J20R3 | n/a | 350 °F | 175 psi | Silicone | |
| 6722-1000050 | Backordered | 602 in stock | $13.07/foot | FT | 1 | 50 | 175 | Carton | 5 | Blue | -65 | 1 | Coolants | 1.340 | 0.34 | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J20R3 | 12 | 350 | 175 | Brick Red | |
| 6722-1000100 | Backordered | 1914 in stock | $11.13/foot | FT | 1 | 100 | 175 | Carton | 5 inch | Blue | -65 °F | 25.4 mm | Water | 1.340 inch | 0.51 kg/m | Silicone | Glossy | Multiple Plies of High Temperature Textile | SAE J2387 | 175 psi | 350 °F | 175 psi | Silicone |
