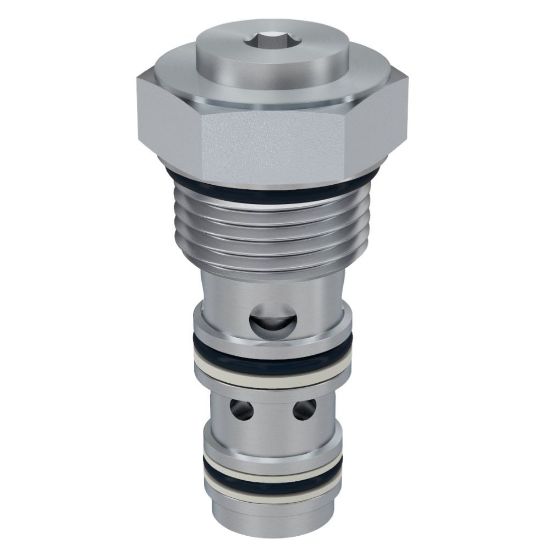

CP084P85 - Single Pilot Operated, Pilot to Open Check Valves

Name: CP084P85 - Single Pilot Operated, Pilot to Open Check Valves
SKU: CP084P85
Price: 55.46 USD
Availability: InStock

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Availability:

213 in stock

Wichita, KS

213

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CP084P85

$55.46/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	5 GAL/MIN, 19 L/MIN
Seal Material	Nitrile	Cracking Pressure	85 PSI, 5.9 BAR
Weight	0.05 kg	Maximum Inlet Pressure Rating	207 bar
Pilot Location	1	For Fluid Type	Mineral-based Hydraulic Fluids
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Temperature	121 °C
Cracking Pressure	5.9 bar	Maximum Operating Pressure	207 bar
Leak Rate	5	Body Material	n/a
Installation Torque	23 lb-ft	Function	Single Pilot to Open Check
Seal Material	Nitrile	Maximum Flow Rate	19 L/min
Flow Direction	2-3 Free Flow	Flow Rate	n/a
Pilot Pressure Ratio	3:1	Filter Efficiency Rating	SAE Class 4
Cavity Size	C08-3	Minimum Operating Temperature	-34 °C
Actuation Type	Pilot Operated	Valve Material	Steel
