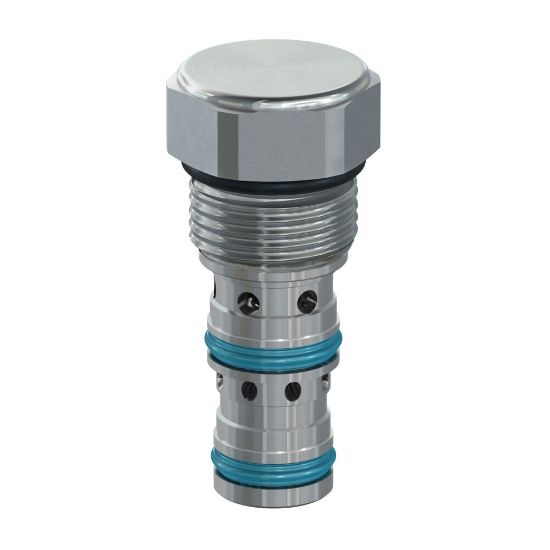

CPH104P15 - Single Pilot Operated, Pilot to Open Check Valves

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU CPH104P15

$50.46/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Cracking Pressure	15 PSI, 1 BAR	Maximum Flow Rate	8 GAL/MIN, 30 L/MIN
Flow Rate	n/a	Actuation Type	Pilot Operated
Body Material	n/a	Maximum Operating Pressure	5000 psi
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Steel
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Maximum Operating Temperature	93 °C
Maximum Flow Rate	30 L/min	Maximum Inlet Pressure Rating	350 bar
Weight	0.2 lb	Seal Material	D-Ring (Standard)
Cavity Size	C10-3	Pilot Pressure Ratio	4:1
Function	Single Pilot to Open Check	Flow Direction	2-3 Free Flow
Pilot Location	1	Leak Rate	2
Cracking Pressure	1 bar	Installation Torque	65 Nm
