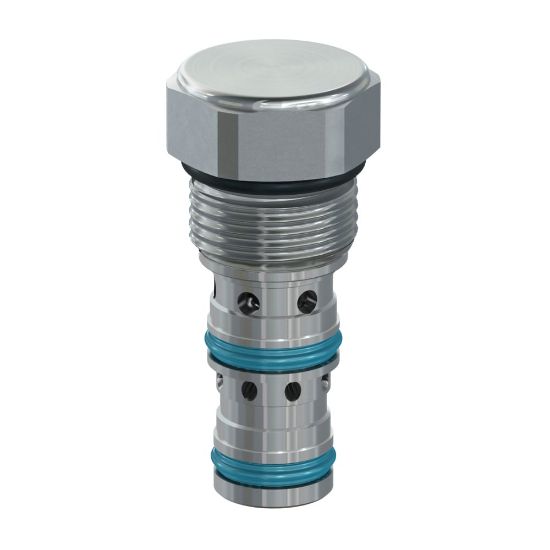

Single Pilot Operated, Pilot to Open Check Valves - CPH104PV

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.
Availability:
Backordered
SKU CPH104PV
$56.33
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialFluorocarbon
Cracking Pressure20 PSI, 1.4 BARMaximum Flow Rate8 GAL/MIN, 30 L/MIN
Flow Raten/aMaximum Operating Temperature400 °F
Actuation TypePilot OperatedSeal MaterialFluorocarbon
Body Materialn/aMaximum Operating Pressure5000 psi
DivisionHydraulic Cartridge Systems DivisionFor Fluid TypeMineral-based Hydraulic Fluids
Operating Temperature-15 to 400 °FDivisionHydraulic Systems Division
Valve MaterialHardened SteelFilter Efficiency RatingISO 4406 18/16/13
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-15 °F
Maximum Flow Rate30 L/minMaximum Inlet Pressure Rating5000 psi
Weight0.2 lbCavity SizeC10-3
Pilot Pressure Ratio4:1Cracking Pressure1.4 bar
FunctionSingle Pilot to Open CheckFlow Direction2-3 Free Flow
Pilot Location1Leak Rate2
Installation Torque65 Nm
