*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

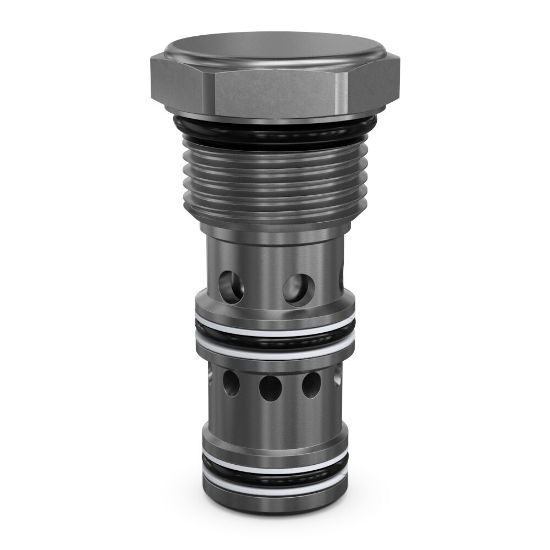

CPH124PV - Single Pilot Operated, Pilot to Open Check Valves

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU CPH124PV

$103.97/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Cracking Pressure	25 PSI, 1.7 BAR	Maximum Flow Rate	20 GAL/MIN, 75 L/MIN
Flow Rate	n/a	Maximum Operating Temperature	204 °C
Actuation Type	Pilot Operated	Seal Material	Fluorocarbon
Body Material	n/a	For Fluid Type	Synthetic Hydraulic Fluids
Leak Rate	5	Valve Material	Steel
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-26 °C	Maximum Operating Pressure	350 bar
Weight	0.44 lb	Maximum Inlet Pressure Rating	5000 psi
Cavity Size	C12-3	Pilot Pressure Ratio	3:1
Function	Single Pilot to Open Check	Flow Direction	2-3 Free Flow
Pilot Location	1	Maximum Flow Rate	75 L/min
Cracking Pressure	1.7 bar	Installation Torque	56 lb-ft
