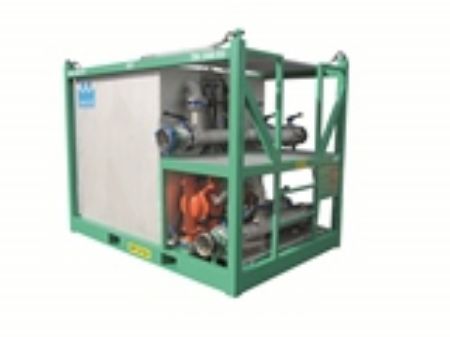

Slurry Skid
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
To operate a Filter Press you need a Slurry Skid. Parker Twin Filter can offer you two options; a single or a double unit.
The single unit is the most economical option however the double unit offers several extra features and benefits.
The two individual compartments of the double Slurry Skid unit operate separately using one compartment for pre coat and one for dosage. This allows easier operation and switch over and provides the possibility to operate two Filter Presses with one slurry skid unit, resulting in minimal down time. For environmental and health reasons we offer our power dosing system for adding the Twinlite (DE material).
Read More...The single unit is the most economical option however the double unit offers several extra features and benefits.
The two individual compartments of the double Slurry Skid unit operate separately using one compartment for pre coat and one for dosage. This allows easier operation and switch over and provides the possibility to operate two Filter Presses with one slurry skid unit, resulting in minimal down time. For environmental and health reasons we offer our power dosing system for adding the Twinlite (DE material).
| Action | SKU | Availability | Partner Available | Price | UOM | Tank Capacity | Height | Wetted Material | Materials of Construction | Length | Industry Application | Specifications Met | Maximum Operating Temperature | Weight | Connection Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS10 | Backordered | 1 Limited Stock | $28.69/each | EA | 10 bbl / 1,6 m3 | 5.6 | SS316L | Frame: carbon steel / powder coated | 8.2 | Service Company | Frame: DNV 2.7-1 / EN12079 | 158.0 | 2360 lb (Empty) | 5 inch Union Fig. 100 M/F | |
| SS30 | Backordered | Backordered | $32.19/each | EA | 2x15 bbl / 2x2,4 m3 | 7.6 | SS316L | Frame: carbon steel / powder coated | 9.8 | Service Company | Frame: DNV 2.7-1 / EN12079 | 158.0 | 5510 lb (Empty) | 5 inch Union Fig. 100 M/F |
