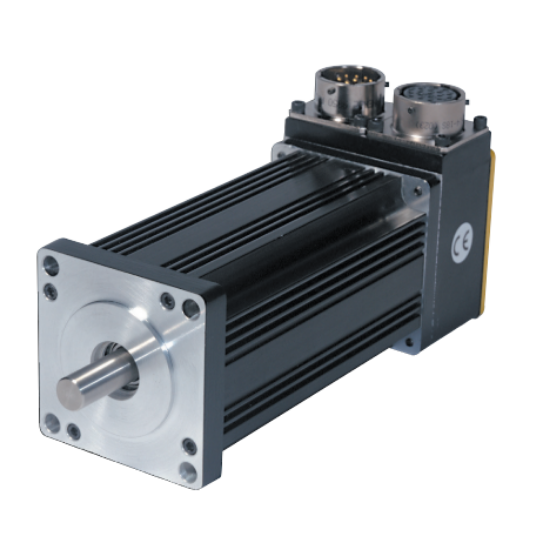

Picture of SM233BR-KPSB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

SM233BR-KPSB

Parker SM233BR-KPSB | Servo Motor | Brushless Type | NEMA23 Frame Size | 6030 rpm Rated Speed | 1.13 Nm Stall Torque Continuous | 3.42 Nm Peak Torque
Availability:
Backordered
Estimated Lead Time: 3 days
Partner Available:Backordered
SKU SM233BR-KPSB
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features

  • NEMA size 16 and 23
  • 0.8 to 11.3 lb-in continuous torque
  • Brushless construction
  • Slotless design provides negligible detent torque, reduced torque ripple and high inertia
  • High-performance neodymium magnets
  • Thermostat protected
  • TENV housing
  • IP65 option
  • Connectorization choices
  • Special winding availability
  • Custom modifications available
  • Two-year warranty
  • CE Compliant
Products specifications
Attribute nameAttribute value
UOMEAInductance1.27 mH
Peak Current11.6 ArmVoltage Constant17.92 Volts/krpm
Stall Current Continuous3.9 ArmPeak Torque3.42 Nm
Number of Poles4MotorServo
Rated Speed6030 rpmResistance2.58 Ohm
Current at Rated Speed3.5 ArmShaft Power at Rated Speed639 Watt
Torque at Rated Speed1.01 NmFrame SizeNEMA23
Torque Constant0.296 Nm/ArmStall Torque Continuous1.13 Nm
