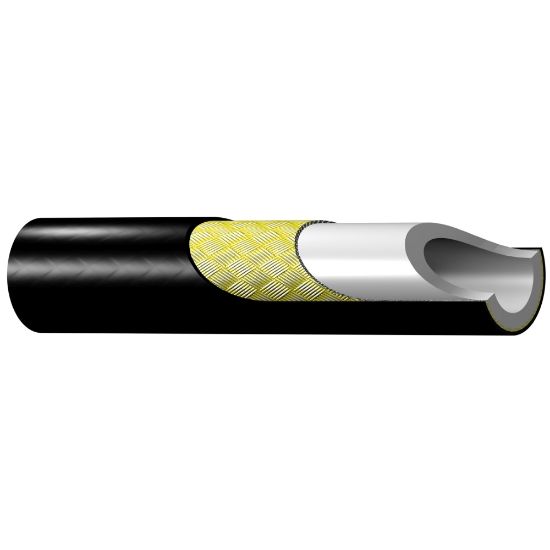

Picture of Small Bore High Pressure Mini Hydraulic Hose – 2020N - 2020N-02V30

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Small Bore High Pressure Mini Hydraulic Hose – 2020N - 2020N-02V30

Parker high pressure mini hydraulic hoses feature a compact hose O.D. for use in mini-hydraulic applications under 7,000 psi.
Availability:
Backordered
SKU 2020N-02V30
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (size)-2
DivisionParflex DivisionMinimum Operating Temperature-40 °C
Specifications MetN/ADesign Factor4:1
Maximum Operating Temperature212 °FCover MaterialPolyurethane
ApplicationHydraulic SystemsMaximum Operating Pressure5800 psi
MediaPetroleum Hydraulic FluidsWeight0.02 kg/m
Inside Diameter3.2 mmOutside Diameter0.240 inch
Compatible FittingRX SeriesMinimum Bend Radius30 mm
Hose Inner Tube MaterialConductiveHose Reinforcement Material1 Braid of High Tensile Synthetic Fiber
Size-2
