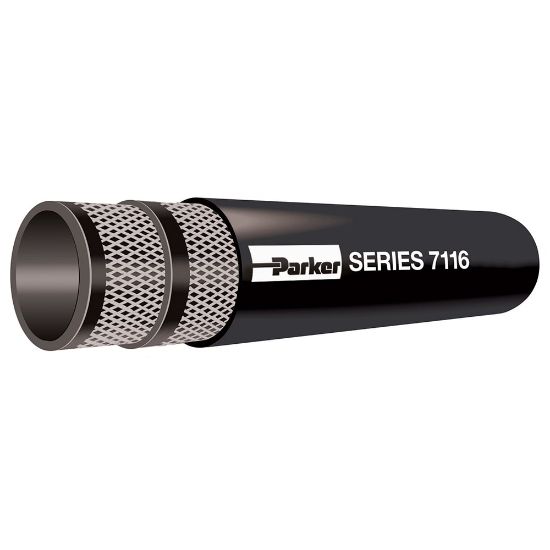

7116M-750 - SOFT-FLEX™ Diesel Exhaust Fluid (DEF) Dispenser Hose, Series 7116M

Soft-Flex Diesel Exhaust Fluid (DEF) Dispenser Hose is designed to transfer diesel exhaust fluid from powered dispensers to 212°F and 150 psi, Series 7116M

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	2614 in stock

SKU 7116M-750

$4.57/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Maximum Working Pressure (psi)	150	Minimum Operating Temperature	-40 °C
Specifications Met	N/A	Design Factor	4:1
Maximum Operating Temperature	212 °F	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Minimum Bend Radius	152 mm	Cover Color	Black
Maximum Operating Pressure	10.3 bar	Cover Structure	Smooth
Inside Diameter	19.1 mm	Package Type	Reel
Hose Inner Tube Material	Black	Hose Reinforcement Material	4 Plies of Textile
Outside Diameter	29.4 mm	Weight	0.34 lb/ft
Length per Package	400 ft	Media	Chemicals (Urea) - Check your fluid compatibility with our catalogue chart.
Compatible Fitting	HBL-C Series
