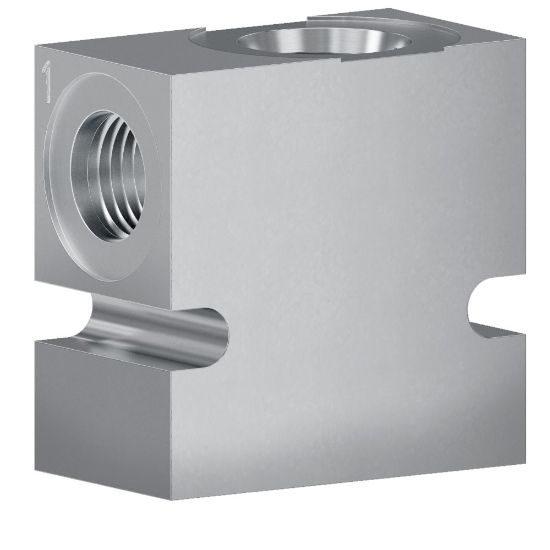

LB10513A - Special Bodies

Parker’s offering of special bodies and cavities for legacy valves to fit a variety of port options and applications.

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU LB10513A

$63.92/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Positions	2 way
Cavity Size	2X	Connection Type	SAE
Body Material	Aluminum	Connection Size	-6
Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Weight	0.45 kg
Connection Type	SAE	Cavity Size	2X
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Maximum Operating Pressure	210 bar
Number of Positions	2 way	Body Material	Aluminum
Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body	Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body	Connection Size	-6
