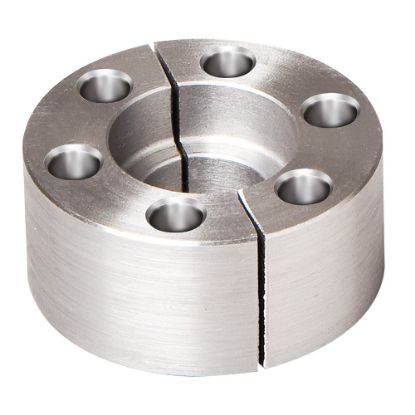

Split Coupler Alignment Aids (Americas)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Split Coupler Alignment Aids are cylinder mounting accessories for hydraulic and pneumatic cylinders. Parker offers a complete range of Cylinder Accessories to assure you of the greatest versatility in present or future cylinder applications.

Markets:
• Industrial
• Energy
• Natural Resources
• Government
• Processing

Applications:
• Energy Production, Development and Service
• Power Generation
• Defense
• Government (Non-Defense)
• Factory Automation
• Machine Tools
• Molding
• Vehicle Assembly Facilities
• Mining
• Oil and Gas
• Food & Beverage
• Industrial Chemical Processing
• Lumber and Wood
• Plastic Processing

Learn more about the Split Coupler alignment aids by viewing the Cylinder Mounting Accessories catalog under related documents.

For cylinder part numbers, serial number look-ups and seal kits please contact us or your local distributor.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Bolt Size	Rod Diameter	Bolt Hole Configuration	Bolt Size	Rod Diameter	Bolt Hole Configuration
1472340062	Backordered	2 Limited Stock	$284.40/each	EA	10-24 x .94 INCH	0.625 INCH	1.125 INCH	10-24 x 0.94 inch	0.625 inch	1.125 inch
1472340100	Backordered	Backordered	$305.95/each	EA	.250-20 x 1.25 INCH	1.000 INCH	1.500 INCH	0.250-20 x 1.25 inch	1 inch	1.500 inch
1472340138	Backordered	Backordered	$354.75/each	EA	.312-18 x 1.50 INCH	1.375 INCH	2.00 INCH	0.312-18 x 1.50 inch	1.375 inch	2.00 inch
1472340175	Backordered	Backordered	$501.80/each	EA	.312-18 x 1.75 INCH	1.750 INCH	2.375 INCH	0.312-18 x 1.75 inch	1.75 inch	2.375 inch
1472340200	Backordered	Backordered	$535.25/each	EA	.375-16 x 2.25 INCH	2.000 INCH	2.687 INCH	0.375-16 x 2.25 inch	2 inch	2.687 inch
1472340250	Backordered	Backordered	$569.30/each	EA	.375-16 x 2.50 INCH	2.500 INCH	3.187 INCH	0.375-16 x 2.50 inch	2.5 inch	3.187 inch
1472340300	Backordered	Backordered	$783.45/each	EA	.500-13 x 3.25 INCH	3.000 INCH	4.000 INCH	0.500-13 x 3.25 inch	3 inch	4.000 inch
1472340350	Backordered	Backordered	$1,000.45/each	EA	.625-11 x 3.50 INCH	3.500 INCH	4.687 INCH	0.625-11 x 3.50 inch	3.5 inch	4.687 inch
1472340400	Backordered	Backordered	$1,101.50/each	EA	.625-11 x 4.00 INCH	4.000 INCH	5.187 INCH	0.625-11 x 4.00 inch	4 inch	5.187 inch
1472340450	Backordered	2 Limited Stock	$1,392.25/each	EA	.625-11 x 4.00 INCH	4.500 INCH	5.687 INCH	0.625-11 x 4.00 inch	4.5 inch	5.687 inch
1472340500	Backordered	Backordered	$1,560.50/each	EA	.625-11 x 4.00 INCH	5.000 INCH	6.187 INCH	0.625-11 x 4.00 inch	5 inch	6.187 inch
1472340550	Backordered	Backordered	$1,829.85/each	EA	.750-10 x 5.00 INCH	5.500 INCH	6.875 INCH	0.750-10 x 5.00 inch	5.5 inch	6.875 inch
1472340700	Backordered	Backordered	$2,679.80/each	EA	1.00-8 x 5.50 INCH	7.000 INCH	8.750 INCH	1.00-8 x 5.50 inch	7 inch	8.750 inch
1472340800	Backordered	Backordered	$3,351.30/each	EA	1.00-8 x 5.50 INCH	8.000 INCH	9.750 INCH	1.00-8 x 5.50 inch	8 inch	9.750 inch
1472341000	Backordered	Backordered	$4,648.30/each	EA	1.25-7 x 6.50 INCH	10.000 INCH	12.125 INCH	1.25-7 x 6.50 inch	10 inch	12.125 inch
