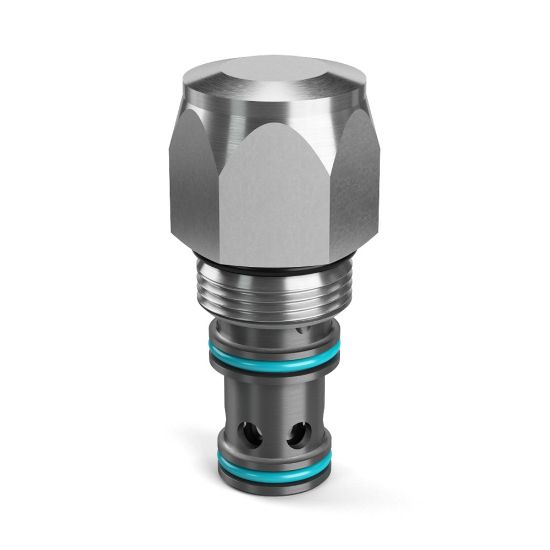

Spool Type Logic Element - 16SLC2-A-150

Name: Spool Type Logic Element - 16SLC2-A-150
SKU: 16SLC2-A-150
Price: 115.49 USD
Availability: LimitedAvailability

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

2 Limited Stock

Olivette, MO

SKU 16SLC2-A-150

$115.49

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Closed	Switching Pressure	150 PSI, 10.3 BAR
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	No
Maximum Flow Rate	50 GAL/MIN, 189 L/MIN	Flow Rate	n/a
Weight	0.33 kg	Maximum Operating Temperature	107 °C
Body Material	n/a	Function	Logic Valve
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based Hydraulic Fluids
Operating Temperature	-37 to 107 °C	Vented	Internal
Division	Hydraulic Systems Division	Leak Rate	82
Configuration	Normally Closed (NC)	Seal Material	Polyurethane EPS
Actuation Type	Pilot to Close	Flow Direction	Nose to Side (1-2)
Operation Type	Pilot Operated	Pilot Location	External
Valve Material	Steel	Switching Pressure	10.3 bar
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Operating Pressure	240 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	240 bar
Minimum Operating Temperature	-35 °F	Dampening Orifice Included	No
Cavity Size	C16-3S	Maximum Flow Rate	50 Gal/min
Installation Torque	54 Nm
