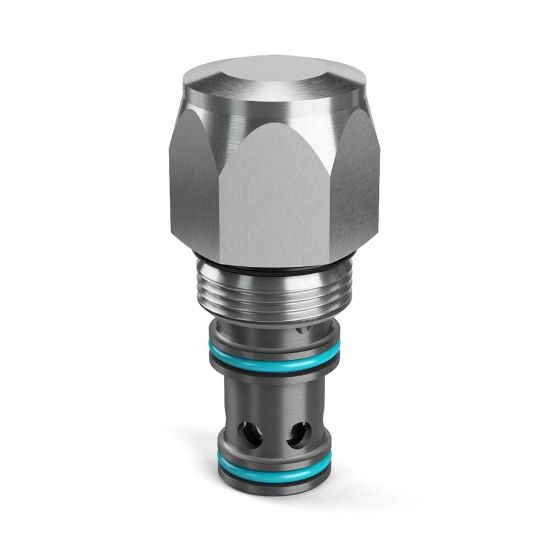

16SLC3-A-100 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 16SLC3-A-100

$103.53/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Open	Switching Pressure	100 PSI, 6.9 BAR
Flow Direction	Side to Nose (2-1)	Dampening Orifice Included	No
Maximum Flow Rate	50 GAL/MIN, 189 L/MIN	Flow Rate	n/a
Maximum Operating Temperature	107 °C	Body Material	n/a
Function	Logic Valve	For Fluid Type	Synthetic Hydraulic Fluids
Vented	Internal	Leak Rate	82
Configuration	Normally Open (NO)	Seal Material	Polyurethane EPS
Actuation Type	Pilot to Close	Flow Direction	Side to Nose (2-1)
Operation Type	Pilot Operated	Pilot Location	External
Valve Material	Steel	Switching Pressure	6.9 bar
Filter Efficiency Rating	SAE Class 4	Maximum Operating Pressure	240 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	240 bar
Minimum Operating Temperature	-35 °F	Dampening Orifice Included	No
Weight	0.78 lb	Cavity Size	C16-3S
Maximum Flow Rate	189 L/min	Installation Torque	40 lb-ft
