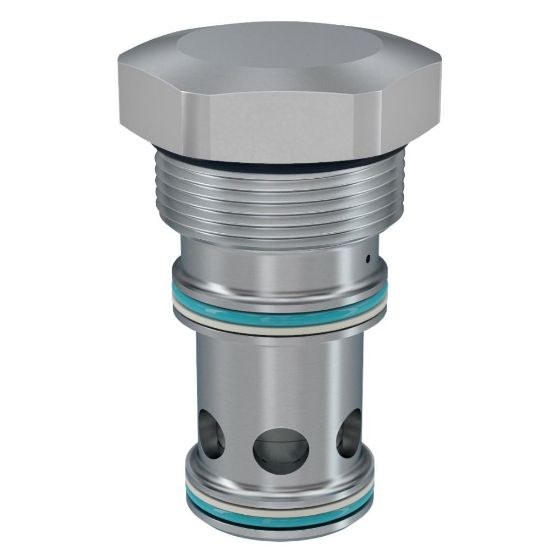

Spool Type Logic Element - 20SLC2-B-100

Name: Spool Type Logic Element - 20SLC2-B-100
SKU: 20SLC2-B-100

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU 20SLC2-B-100

$180.09

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Closed	Switching Pressure	100 PSI, 6.9 BAR
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	Yes
Maximum Flow Rate	80 GAL/MIN, 303 L/MIN	Flow Rate	n/a
Body Material	n/a	Function	Logic Valve
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based Hydraulic Fluids
Operating Temperature	-35 to 225 °F	Vented	External
Division	Hydraulic Systems Division	Leak Rate	82
Configuration	Normally Closed (NC)	Seal Material	Polyurethane EPS
Actuation Type	Vent to Open	Flow Direction	Nose to Side (1-2)
Operation Type	Pilot Operated	Pilot Location	Internal
Valve Material	Steel	Switching Pressure	100 psi
Filter Efficiency Rating	SAE Class 4	Maximum Operating Pressure	240 bar
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	3500 psi
Maximum Operating Temperature	225 °F	Minimum Operating Temperature	-35 °F
Dampening Orifice Included	Yes	Weight	1.78 lb
Cavity Size	C20-3S	Maximum Flow Rate	303 L/min
Installation Torque	113 Nm
