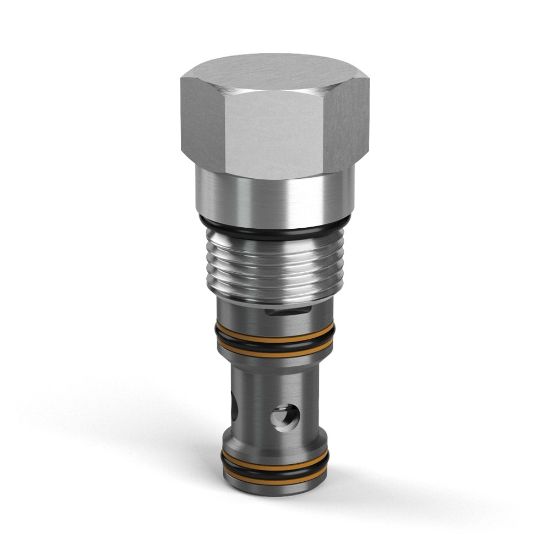

R04G3-15.0N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Backordered Estimated Lead Time: 290 days
Partner Available:	Backordered

SKU R04G3-15.0N

$196.46/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Flow Direction	Side to Nose (2-1)
Maximum Flow Rate	15 GAL/MIN, 57 L/MIN	Dampening Orifice Included	Yes
Switching Pressure	218 PSI, 15 BAR	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	6000 psi
Function	Logic Valve	Vented	External
Weight	0.3 lb	Cavity Size	C10-3S
Actuation Type	Vent to Close	Flow Direction	Side to Nose (2-1)
Operation Type	Pilot Operated	Pilot Location	Internal
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Dampening Orifice Included	Yes
Minimum Operating Temperature	-34 °C	Maximum Inlet Pressure Rating	6000 psi
Installation Torque	50 Nm	Configuration	Normally Open
Maximum Operating Temperature	+121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Switching Pressure	15 bar	Flow Rate	9.2 @ 100 PSI (7 BAR) Nominal Gal/min
Leak Rate	50 @ 1450 PSI (BAR) cm3/min	Maximum Flow Rate	45 Gal/min
