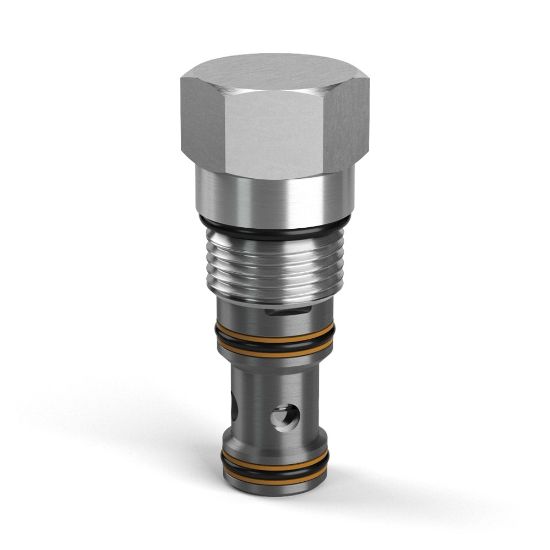

R04H3-5.0N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU R04H3-5.0N

$166.38/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Flow Direction	Side to Nose (2-1)
Maximum Flow Rate	15 GAL/MIN, 57 L/MIN	Dampening Orifice Included	No
Switching Pressure	73 PSI, 5 BAR	Seal Material	Nitrile
Body Material	n/a	Function	Logic Valve
Vented	External	Weight	0.3 lb
Cavity Size	C10-3S	Actuation Type	Vent to Close
Flow Direction	Side to Nose (2-1)	Operation Type	Pilot Operated
Pilot Location	Internal	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Dampening Orifice Included	No	Minimum Operating Temperature	-34 °C
Maximum Operating Pressure	420 bar	Maximum Inlet Pressure Rating	420 bar
Installation Torque	37 lb-ft	Configuration	Normally Open
Maximum Operating Temperature	+250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Switching Pressure	73 psi	Flow Rate	35 @ 100 PSI (7 BAR) Nominal L/min
Leak Rate	50 @ 1450 PSI (BAR) cm3/min	Maximum Flow Rate	45 Gal/min
