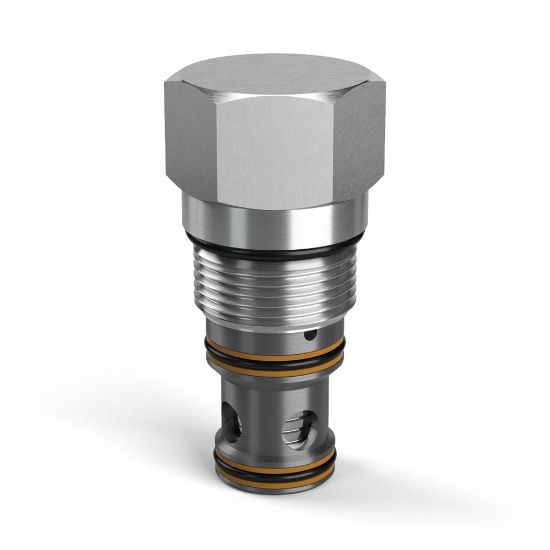

R06E3-10.0N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU R06E3-10.0N

$138.18/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Closed	Flow Direction	Nose to Side (1-2)
Dampening Orifice Included	No	Switching Pressure	145 PSI, 10 BAR
Maximum Flow Rate	106 GAL/MIN, 400 L/MIN	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	6000 psi
Function	Logic Valve	Vented	Internal
Actuation Type	Pilot to Close	Flow Direction	Nose to Side (1-2)
Operation Type	Pilot Operated	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Dampening Orifice Included	No
Minimum Operating Temperature	-30 °F	Cavity Size	C16-3S
Maximum Inlet Pressure Rating	6000 psi	Maximum Flow Rate	400 L/min
Installation Torque	74 lb-ft	Configuration	Normally Closed
Maximum Operating Temperature	+250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Weight	0.84 lb	Switching Pressure	145 psi
Flow Rate	270 @ 100 PSI (7 BAR) Nominal L/min	Leak Rate	90 @ 1450 PSI (BAR) cm3/min
