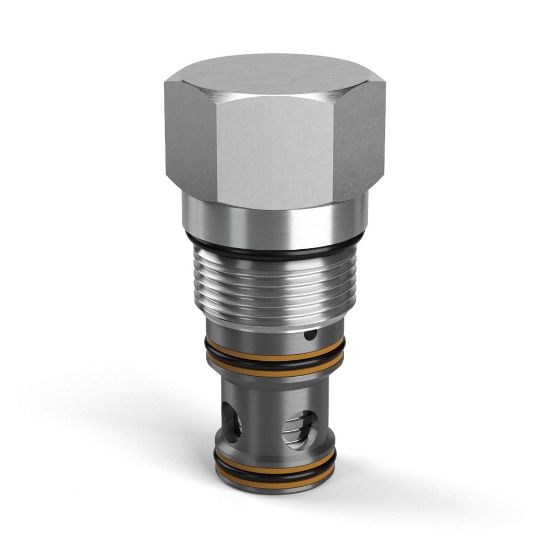

R06H3-5.5N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU R06H3-5.5N

$218.55/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Open
Flow Direction	Side to Nose (2-1)	Dampening Orifice Included	No
Seal Material	Nitrile	Switching Pressure	80 PSI, 5.5 BAR
Maximum Flow Rate	42 GAL/MIN, 160 L/MIN	Maximum Flow Rate	42 Gal/min
Minimum Operating Temperature	-34 °C	Operation Type	Pilot Operated
Pilot Location	Internal	Seal Material	Nitrile
Flow Rate	24 @ 100 PSI (7 BAR) Nominal Gal/min	Configuration	Normally Open
Dampening Orifice Included	No	Switching Pressure	5.5 bar
Body Material	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Flow Direction	Side to Nose (2-1)	Cavity Size	C16-3S
Installation Torque	74 lb-ft	Vented	External
Weight	0.38 kg	Function	Logic Valve
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Temperature	+250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Vent to Close
Valve Material	All parts steel. All operating parts hardened steel	Leak Rate	125 @ 1450 PSI (BAR) cm3/min
Maximum Inlet Pressure Rating	6000 psi	Maximum Operating Pressure	420 bar
