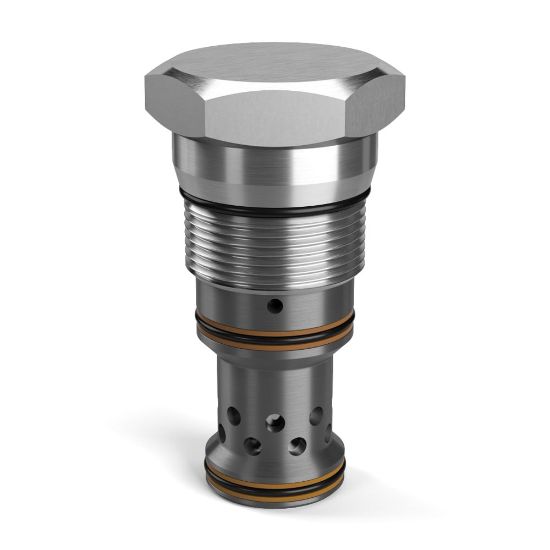

R08E3-10.0N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU R08E3-10.0N

$295.40/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Dampening Orifice Included	No
Configuration	Normally Closed	Seal Material	Nitrile
Flow Direction	Nose to Side (1-2)	Switching Pressure	145 PSI, 10 BAR
Maximum Flow Rate	132 GAL/MIN, 500 L/MIN	Seal Material	Nitrile
Maximum Flow Rate	500 L/min	Minimum Operating Temperature	-34 °C
Operation Type	Pilot Operated	Actuation Type	Pilot to Close
Body Material	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Cavity Size	C20-3S	Leak Rate	90 @ 1450 PSI (BAR) cm3/min
Function	Logic Valve	Switching Pressure	10 bar
Installation Torque	150 Nm	Pilot Location	External
Flow Direction	Nose to Side (1-2)	Maximum Operating Temperature	+250 °F
Dampening Orifice Included	No	Maximum Operating Pressure	420 bar
Flow Rate	90 @ 100 PSI (7 BAR) Nominal Gal/min	Weight	1.52 lb
Maximum Inlet Pressure Rating	420 bar	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Normally Closed
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Vented	Internal
