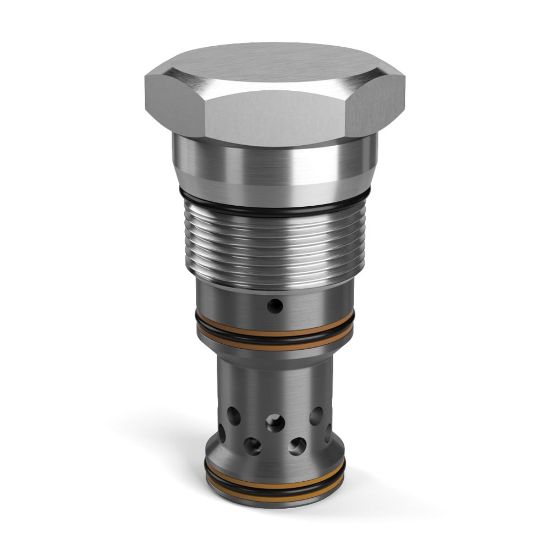

Spool Type Logic Element - R08F3-10.0N

Name: Spool Type Logic Element - R08F3-10.0N
SKU: R08F3-10.0N

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU R08F3-10.0N

$375.53

Products specifications

Attribute name	Attribute value
UOM	EA	Switching Pressure	145 PSI, 10 BAR
Maximum Flow Rate	132 GAL/MIN, 500 L/MIN	Dampening Orifice Included	Yes
Flow Direction	Nose to Side (1-2)	Seal Material	Nitrile
Configuration	Normally Closed	Valve Material	All parts steel. All operating parts hardened steel
Maximum Flow Rate	132 Gal/min	Configuration	Normally Closed
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Vented	Internal
Weight	0.69 kg	Flow Direction	Nose to Side (1-2)
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Temperature	+250 °F
Maximum Inlet Pressure Rating	6000 psi	Minimum Operating Temperature	-30 °F
Operation Type	Pilot Operated	Switching Pressure	145 psi
Actuation Type	Vent to Open	Installation Torque	150 Nm
Pilot Location	Internal	Function	Logic Valve
Operating Temperature	-34 to +121 °C	Division	Mobile Hydraulic Systems Division Europe
Leak Rate	90 @ 1450 PSI (BAR) cm3/min	Seal Material	Nitrile
Division	Hydraulic Cartridge Systems Division	Dampening Orifice Included	Yes
Flow Rate	340 @ 100 PSI (7 BAR) Nominal L/min	Cavity Size	C20-3S
Maximum Operating Pressure	6000 psi	Body Material	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids
