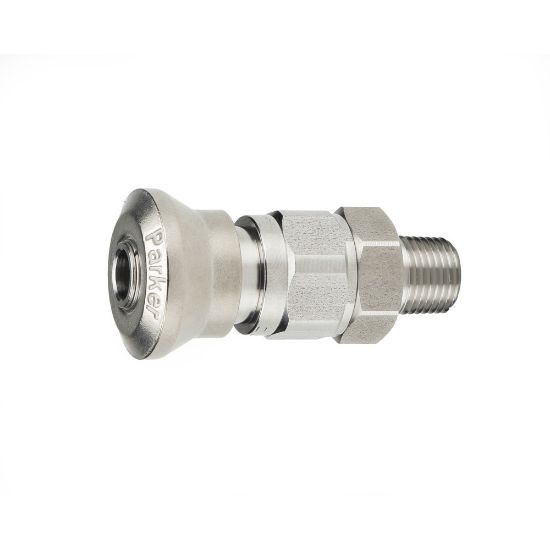

2M-Q4CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	5 in stock

SKU 2M-Q4CY-SSP

$107.90/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Connection Thread Size (inch)	1/8 - 27	Coupling Half	Female Coupler
Connection Type	Male NPT	Tube Size (inch)	na
Maximum Operating Pressure	3000	Maximum Operating Pressure	3000 psi
Maximum Operating Temperature	400 °F	Body Material	316 Stainless Steel
Seal Material	Fluorocarbon	Hose Inside Diameter	na
Minimum Operating Temperature	-15 °F	Valve Type	Poppet
Vacuum Pressure Rating	0.05 mm-Hg

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
