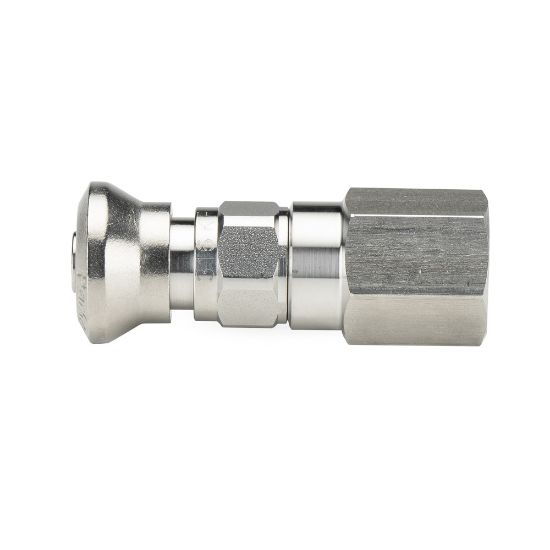

4F-Q4CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU 4F-Q4CY-SSP

$122.24/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000
Connection Thread Size (inch)	1/4 - 18	Tube Size (inch)	na
Connection Type	Female NPT	Coupling Half	Female Coupler
Body Size (inch)	1/4	Maximum Operating Temperature	400 °F
Minimum Operating Temperature	-15 °F	Body Material	316 Stainless Steel
Seal Material	Fluorocarbon	Hose Inside Diameter	na
Valve Type	Poppet	Vacuum Pressure Rating	0.05 mm-Hg
Maximum Operating Pressure	3000 psi
