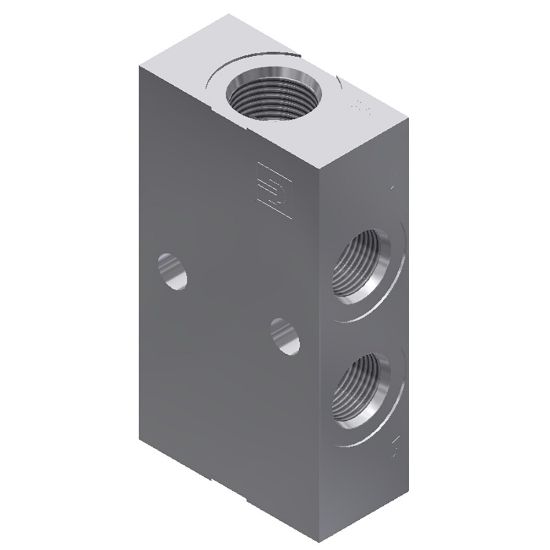

830683 - Standard Bodies

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU 830683

$194.23/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Cavity Size	C10
Connection Size	-8	Connection Type	SAE
Number of Positions	Dual PO Check, 4 way	Body Material	Steel
For Fluid Type	Synthetic Hydraulic Fluids	Body Material	Steel
Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body	Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Connection Size	-8	Number of Positions	Dual PO Check
Maximum Operating Pressure	350 bar	Connection Type	SAE
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Weight	1.36 kg
Cavity Size	C10	Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body
