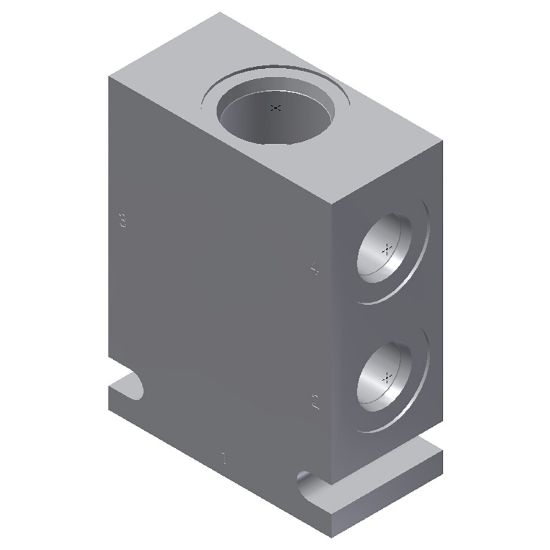

B10-4-A8T - Standard Bodies

Parker’s offering of standard line bodies for each valve and cavity size offered in our catalog. These line bodies feature industry standard cavities.

Availability:	Backordered Estimated Lead Time: 145 days
Partner Available:	12 in stock

SKU B10-4-A8T

$86.40/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	SAE
Body Material	Aluminum	Connection Size	-8
Cavity Size	C10-4	Number of Positions	4 way
Connection Type	SAE	For Fluid Type	Mineral-based Hydraulic Fluids
Body Material	Aluminum	Maximum Operating Pressure	210 bar
Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body	Seal Material	Determined by Threaded Cartridge Valve installed in Line Body
Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body	Connection Size	-8
Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	Weight	0.8 lb
Cavity Size	C10-4	Number of Positions	4-Way
