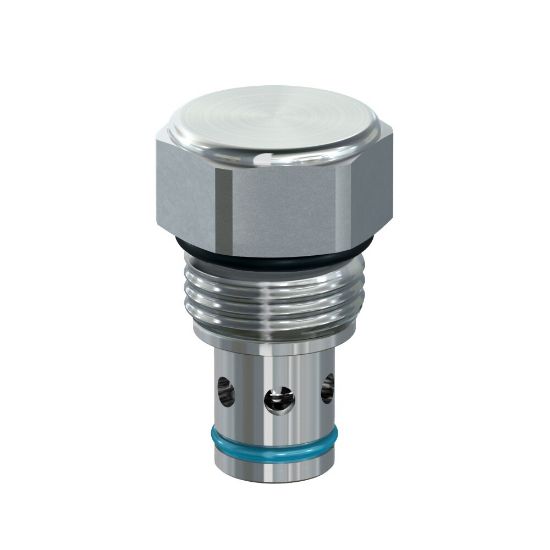

CVH081P100 - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	4 in stock

SKU CVH081P100

$17.96/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Cracking Pressure	100 PSI, 6.9 BAR	Maximum Flow Rate	10 GAL/MIN, 38 L/MIN
Flow Rate	n/a	Body Material	n/a
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Steel
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Maximum Operating Temperature	200 °F
Weight	0.1 kg	Maximum Operating Pressure	350 bar
Actuation Type	Pressure Sensing	Cavity Size	C08-2
Maximum Inlet Pressure Rating	5000 psi	Seal Material	D-Ring (Standard)
Maximum Flow Rate	10 Gal/min	Cracking Pressure	6.9 bar
Leak Rate	2	Function	Standard Check
Flow Direction	2-1 Checked	Installation Torque	43-49 Nm
