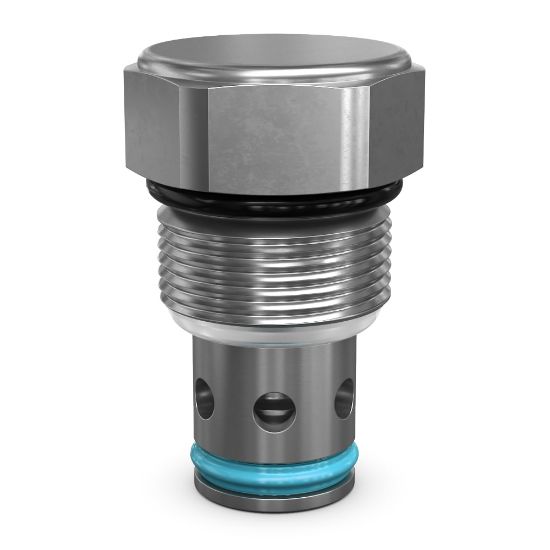

CVH103P100 - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU CVH103P100

$19.79/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Cracking Pressure	100 PSI, 6.9 BAR	Maximum Flow Rate	16 GAL/MIN, 60 L/MIN
Flow Rate	n/a	Body Material	n/a
Maximum Operating Pressure	5000 psi	For Fluid Type	Mineral-based Hydraulic Fluids
Valve Material	Hardened Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-37 °C
Maximum Operating Temperature	200 °F	Actuation Type	Pressure Sensing
Cavity Size	C10-2	Maximum Inlet Pressure Rating	350 bar
Weight	0.2 lb	Seal Material	D-Ring (Standard)
Cracking Pressure	100 psi	Maximum Flow Rate	60 L/min
Leak Rate	2	Function	Standard Check
Flow Direction	2-1 Checked	Installation Torque	69 to 75 Nm
