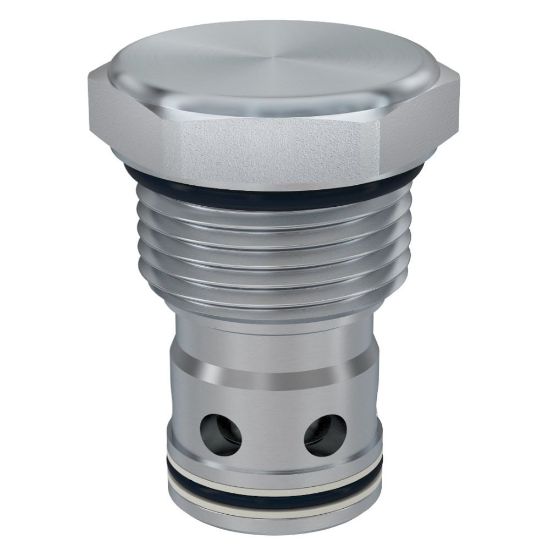

CVH121P - Standard Check Valves

Name: CVH121P - Standard Check Valves
SKU: CVH121P
Price: 66.56 USD
Availability: InStock

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:

5 in stock

Olivette, MO

Partner Available:

43 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CVH121P

$66.56/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure	25 PSI, 1.7 BAR	Maximum Flow Rate	32 GAL/MIN, 121 L/MIN
Flow Rate	n/a	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Body Material	n/a
Maximum Operating Pressure	5000 psi	For Fluid Type	Mineral-based Hydraulic Fluids
Weight	0.14 kg	Leak Rate	5
Valve Material	Hardened Steel	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Actuation Type	Pressure Sensing	Maximum Inlet Pressure Rating	350 bar
Cavity Size	C12-2	Cracking Pressure	25 psi
Installation Torque	76 Nm	Function	Standard Check
Flow Direction	2-1 Checked	Maximum Flow Rate	121 L/min
