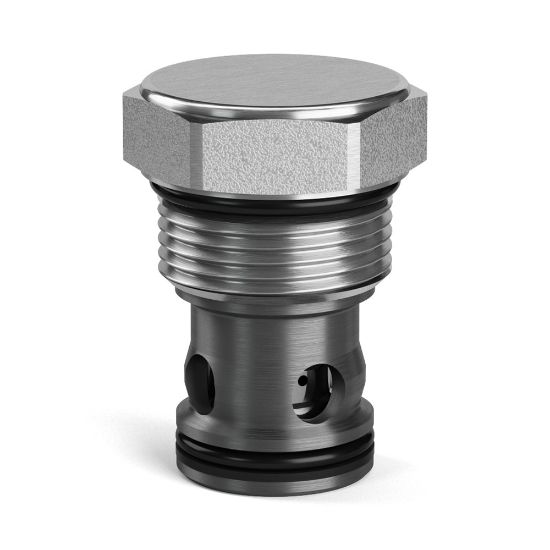

Picture of Standard Check Valves - CVH161P

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Standard Check Valves - CVH161P

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.
Availability:
11 in stock
Olivette, MO7
Wichita, KS4
SKU CVH161P
$69.38
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
Cracking Pressure5 PSI, 0.3 BARMaximum Flow Rate60 GAL/MIN, 225 L/MIN
Flow Raten/aSeal MaterialNitrile
Maximum Operating Temperature250 °FBody Materialn/a
DivisionHydraulic Cartridge Systems DivisionFor Fluid TypeMineral-based Hydraulic Fluids
DivisionHydraulic Systems DivisionLeak Rate5
Valve MaterialSteelFilter Efficiency RatingISO 4406 18/16/13
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-34 °C
Maximum Operating Pressure350 barActuation TypePressure Sensing
Operating Temperature-30 to 250 °FMaximum Inlet Pressure Rating350 bar
Cavity SizeC16-2Weight0.27 kg
Cracking Pressure0.3 barFunctionStandard Check
Flow Direction2-1 CheckedMaximum Flow Rate225 L/min
Installation Torque99 Nm
