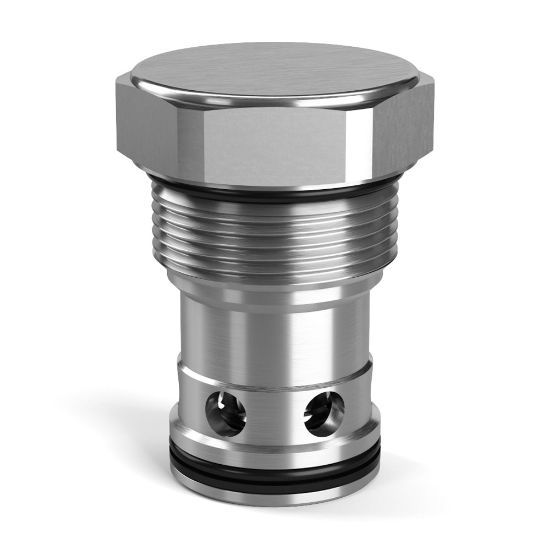

CVH201P - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:	Backordered Estimated Lead Time: 57 days
Partner Available:	17 in stock

SKU CVH201P

$178.49/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Flow Rate	80 GAL/MIN, 303 L/MIN	Cracking Pressure	5 PSI, 0.3 BAR
Flow Rate	n/a	Seal Material	Nitrile
Body Material	n/a	For Fluid Type	Mineral-based Hydraulic Fluids
Leak Rate	5	Valve Material	Steel
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	121 °C	Maximum Flow Rate	303 L/min
Minimum Operating Temperature	-34 °C	Maximum Operating Pressure	350 bar
Actuation Type	Pressure Sensing	Maximum Inlet Pressure Rating	350 bar
Weight	0.27 kg	Cavity Size	C20-2
Cracking Pressure	0.3 bar	Function	Standard Check
Flow Direction	2-1 Checked	Installation Torque	98 lb-ft
