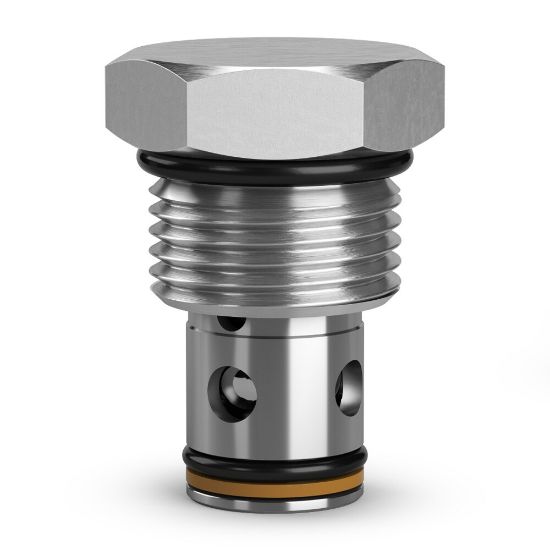

Picture of Standard Check Valves - D04B2-15.0N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Standard Check Valves - D04B2-15.0N

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.
Availability:
Backordered
SKU D04B2-15.0N
$51.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
Cracking Pressure217 PSI, 15 BARMaximum Flow Rate42 GAL/MIN, 160 L/MIN
Seal MaterialNitrileMaximum Operating Temperature250 °F
Body Materialn/aMaximum Operating Pressure6000 psi
DivisionHydraulic Cartridge Systems DivisionFor Fluid TypeMineral-based Hydraulic Fluids
Valve MaterialSteel (all parts)Filter Efficiency RatingSAE Class 4
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-34 °C
Weight0.08 kgActuation TypePressure Sensing
DivisionMobile Hydraulic Systems Division EuropeOperating Temperature-30 to 250 °F
Maximum Inlet Pressure Rating6000 psiCavity SizeC10-2
Installation Torque37 lb-ftMaximum Flow Rate160 L/min
FunctionStandard CheckFlow Direction2-1 Checked
Flow Rate90 L/min @ 100 Psi (7 bar) NominalLeak Rate3 drops/min @ 6000 Psi (420 bar)
Cracking Pressure217 psi
