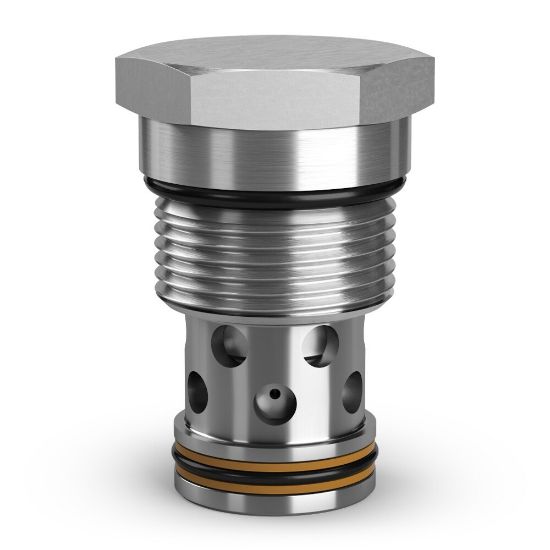

Picture of Standard Check Valves - D06B2P0.1V

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Standard Check Valves - D06B2P0.1V

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.
Availability:
Backordered
SKU D06B2P0.1V
$145.46
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialFluorocarbon
Cracking Pressure1.5 PSI, 0.1 BARMaximum Flow Rate132 GAL/MIN, 500 L/MIN
Maximum Operating Temperature204 °CSeal MaterialFluorocarbon
Body Materialn/aDivisionHydraulic Cartridge Systems Division
For Fluid TypeMineral-based Hydraulic FluidsOperating Temperature-26 to 204 °C
Valve MaterialSteel (all parts)Filter Efficiency RatingSAE Class 4
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Minimum Operating Temperature-26 °C
Maximum Operating Pressure420 barActuation TypePressure Sensing
DivisionMobile Hydraulic Systems Division EuropeMaximum Inlet Pressure Rating6000 psi
Cavity SizeC16-2Installation Torque100 Nm
Weight0.6 lbFlow Direction1-2 Free Flow
FunctionStandard CheckLeak Rate< 3 drops/min @ 6000 Psi (420 bar)
Flow Rate280 L/min @ 100 Psi (7 bar) NominalMaximum Flow Rate500 L/min
Cracking Pressure1.5 psi
