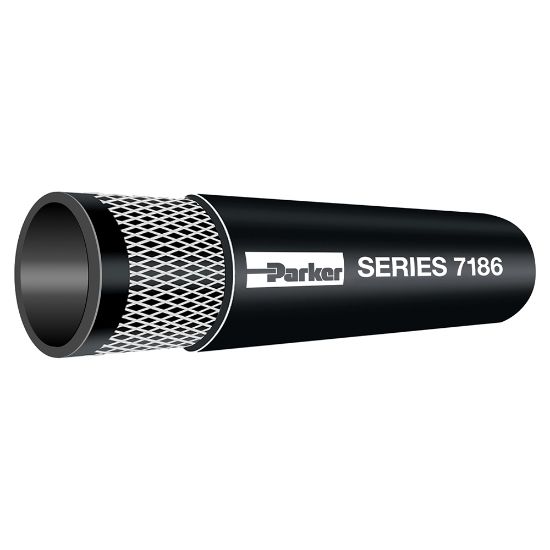

7186-631050 - Standard Duty Heater Hose, Series 7186

Standard Duty Heater Hose is designed for use in heater and radiator systems in in vehicles and industrial equipment in applications to 212°F and 125 psi, Series 7186

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	525 in stock

SKU 7186-631050

$2.43/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	5/8
Standard Pack Qty (ft)	5 X 50	Maximum Working Pressure (psi)	90
Minimum Operating Temperature	-40 °C	Specifications Met	N/A
Maximum Operating Temperature	100 °C	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Minimum Bend Radius	8 inch	Package Type	Carton
Cover Color	Black	Weight	0.20 lb/ft
Inside Diameter	15.9 mm	Hose Reinforcement Material	2 Plies of Textile
Media	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	Outside Diameter	23 mm
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Maximum Operating Pressure	6.2 bar

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
