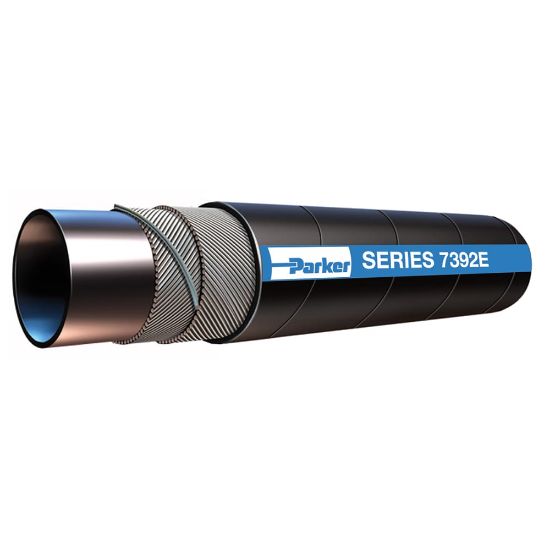

7392E-1500 - Standard Duty Water Suction Hose, Series 7392E

Name: 7392E-1500 - Standard Duty Water Suction Hose, Series 7392E
SKU: 7392E-1500
Price: 8.94 USD
Availability: InStock

Standard Duty Water Suction Hose is designed for water transfer in applications to 180°F and 150 psi, Series 7392E

Availability:

4 in stock

Springfield, MO

Partner Available:

4897 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7392E-1500

$8.94/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/2
Minimum Operating Temperature	-40 °F	Specifications Met	N/A
Media	Water	Design Factor	n/a
Minimum Bend Radius	152 mm	Maximum Operating Pressure	150 psi
Cover Color	Black	Maximum Operating Temperature	180 °F
Hose Inner Tube Material	Black	Cover Material	Synthetic Rubber
Inside Diameter	38.1 mm	Weight	0.72 lb/ft
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Outside Diameter	1.9 inch
Vacuum Pressure Rating	737 mm-Hg
